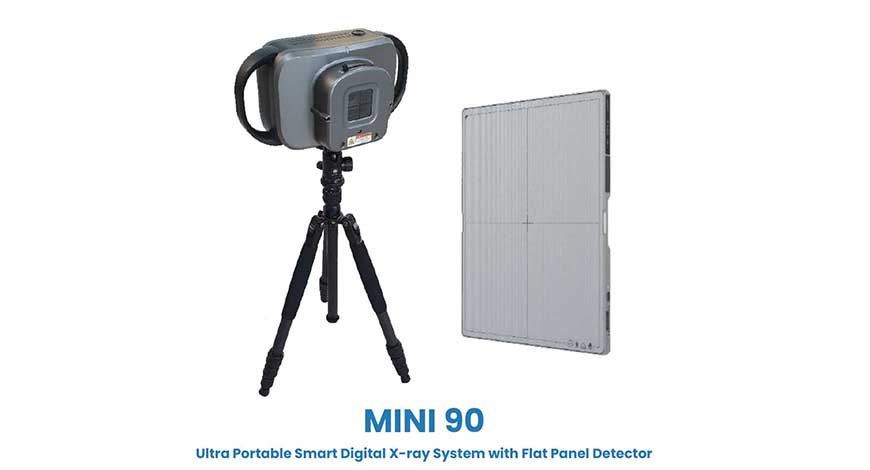

MINI 90: Ultra-portable Smart digital x-ray system

Revolutionizing point-of-care imaging
India’s healthcare sector is rapidly transforming, with rising demand for accessible and affordable diagnostic imaging solutions. With a vast geography coupled with a large rural population, millions still lack access to timely medical imaging, especially in remote and underserved areas. The handheld ultra-portable x-ray system MINI 90 offers a lightweight, compact design and powerful imaging capability that brings advanced AI-powered diagnostics to every corner of the country.

Unmatched performance, compact design
The MINI 90’s unique feature is its design, which packs powerful performance into a compact, easy-to-carry design that weighs less than 4 kg, enabling rapid deployment in critical situations. Its generator design offers a kV range of 40-90 kV selectable in 1kV steps that ensures adequate image quality of large and medium framework patients’ organs like hip joints/lumbar spine in AP view. With the power of 10 mA & 20 mAs, it helps handle examinations requiring better contrast. With a facility for more than 100 exposures in a single charge, it is of immense use in field studies/health screening camps.

Advanced imaging capabilities providing precision and clarity
Its advanced imaging technology ensures enhanced image clarity radiographs for faster diagnosis, lower radiation dose secures patient safety, and instant image processing aids real-time assessments. Its single-click organ-based exposure settings can be customized for various anatomical regions. Its field size of 43 cmx43 cm at 100 cm SID is ideal for full-body optimum imaging without magnification.

Ergonomic design for ease of use and enhanced user experience
The MINI 90 is designed so that radiographers can operate the system with the utmost ease of use and handle large volumes of patients efficiently. The 7-inch LCD touchscreen offers an intuitive interface and facilitates anatomical programs of up to 8 body parts. It also has enhanced safety measures such as dose display, leak-proof adjustable collimator, and skin guard, which give information and limit scattered radiation exposure. The temperature and shock sensor in the flat panel detector ensures warning signals during unfavorable conditions.

Versatility meets intelligence with AI-powered diagnostics
The MINI 90’s versatility makes it suitable for various clinical applications such as emergency and trauma care, remote and rural healthcare, home geriatric care, and military and disaster response. It is integrated with advanced AI technology, automatically detecting up to 18 types of chest abnormalities, including pneumonia and other critical conditions.

Commitment to global regulations and standards
Mini 90 is certified by AERB, CDSCO, and IEC standards. The highest quality standards are adhered to, and the factory is ISO 13485 certified. Comprehensive patient and radiographer safety training is provided.

Paving the way for a healthier India with MINI 90
As India moves toward a future of an inclusive health system, embracing technologies like MINI 90 will be the key to reducing healthcare disparities and ensuring every patient has access to faster, more efficient, safer, and more accurate medical care. MINI 90 is more than just an innovation- it is a commitment to universal healthcare and digital transformation in India!
